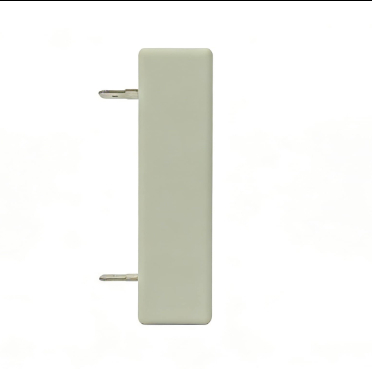

Durable Cement Resistor With Faston Terminals
1. Flameproof construction in a ceramic case for superior humidity and insulation resistance
2. Quick connect Faston terminals specifically designed for automotive applications
3. Excellent heat dissipation with minimal linear temperature coefficient
4. Instant overload capability with low noise figures and stable resistance values
5. AEC-Q200 qualified for automotive-grade reliability
Product Overview
Durable cement resistors with Faston connectors feature a high-power ceramic housing design, offering excellent flame retardancy, moisture resistance, and insulation. The flame-retardant ceramic encapsulation effectively prevents performance degradation in high-humidity or high-temperature environments.
Equipped with fast-connect Faston connectors, these resistors are designed for automotive electronics systems, providing fast and reliable electrical connections suitable for high-current and high-temperature applications. This series of resistors exhibits excellent heat dissipation and a stable linear temperature coefficient, maintaining stable resistance changes over long-term operation and meeting AEC-Q200 automotive-grade reliability standards.
Product Technical Specifications
| Item |
Parameter Description |
| Product Name |
Durable Cement Resistor with Faston Terminals |
| Rated Power |
30W |
| Resistance Range |
1Ω ～ 2.5KΩ |
| Resistance Tolerance |
±1% , ±5% |
| Resistance Temp. Coeff. |
±300ppm/°C |
| Operating Voltage |
50V ～ 1000V |
| Operating Temperature Range |
-55°C ～ +155°C |
| Structure |
Ceramic flame-retardant housing, Faston terminal connection |
| Flame Retardant Rating |
UL94V-0 Flame Retardant Standard |
| Certification |
AEC-Q200 Automotive Electronics Reliability Certification |
Product Performance Advantages
Excellent Heat Dissipation
Optimized ceramic structure provides excellent thermal conductivity, maintaining stable temperature during high-power operation.
Low Temperature Coefficient & Low Noise
Low linear temperature drift and low noise ensure circuit accuracy and stability.
Fast Terminals
Designed specifically for automotive wiring harness systems, facilitating rapid assembly and improving efficiency.
Durable & Safe
Utilizing explosion-proof and flame-retardant materials, it remains safe under overload conditions, complying with UL and AEC-Q200 standards.
Applications
Durable Cement Resistor With Faston Terminals is widely used in:
- Automotive Electronics
- Battery & Charger Systems
- Power Supplies & Inverters
- Industrial Control Units
- High Power Load Testing Systems
